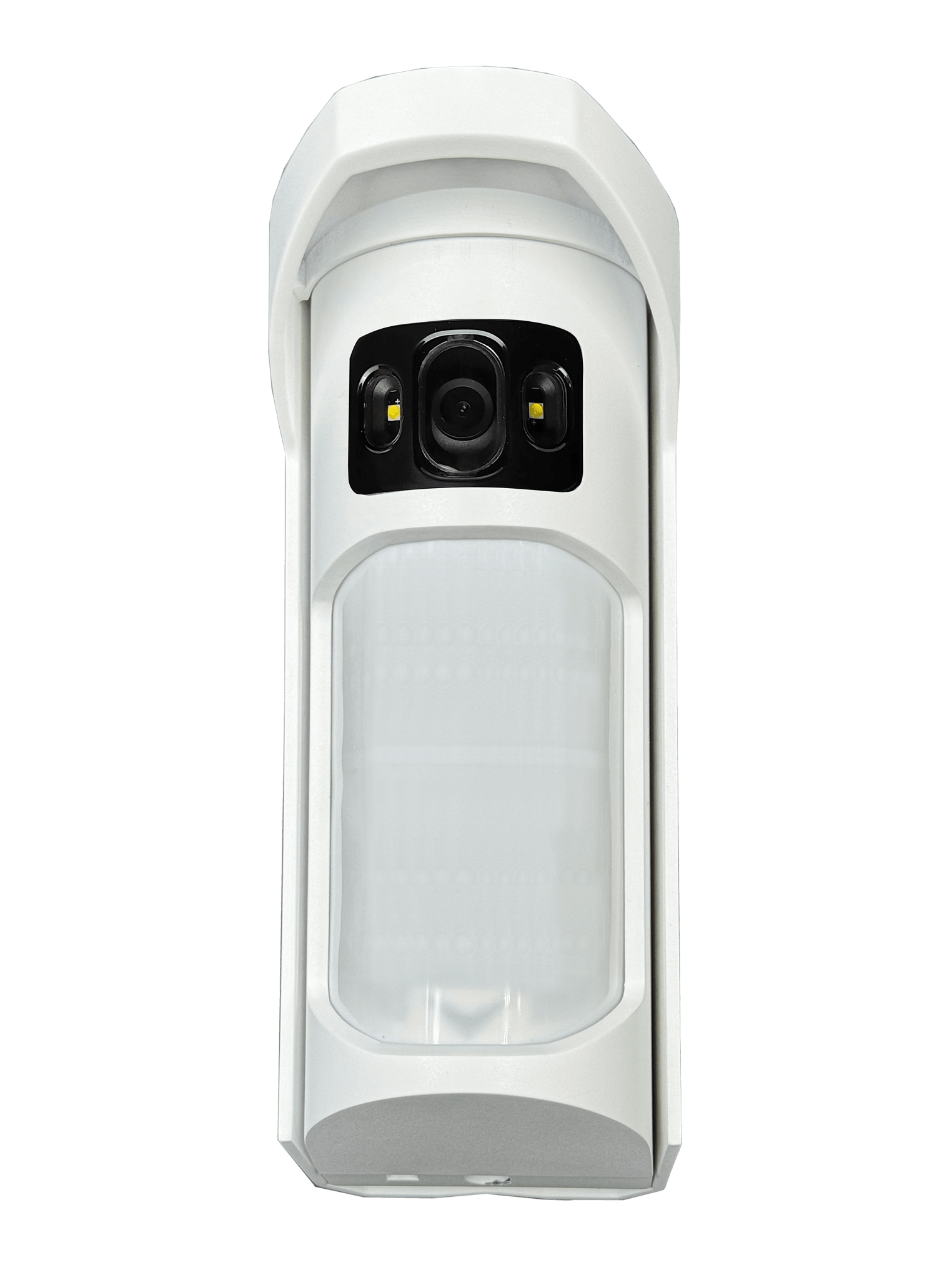

SV202- Outdoor Pircam

The SV201 PIRCAM is a detector combining
Passive Infra-Red (PIR) sensor and image sensor
to capture images when motion is detected.
This is used for video verification at an alarm
monitoring center to reduce false alarms events
triggered from the protected site. The device
also supports on-demand photo capture by the
controller, as requested by a user through the
App, or as an action following an alarm
condition or perhaps as part of a home
automation scenes.

Change camera tilt angle

You can move camera lens to the angle that is suitable for your installation. It can be up to 10 degrees up or 10 degrees down




High resolution camera

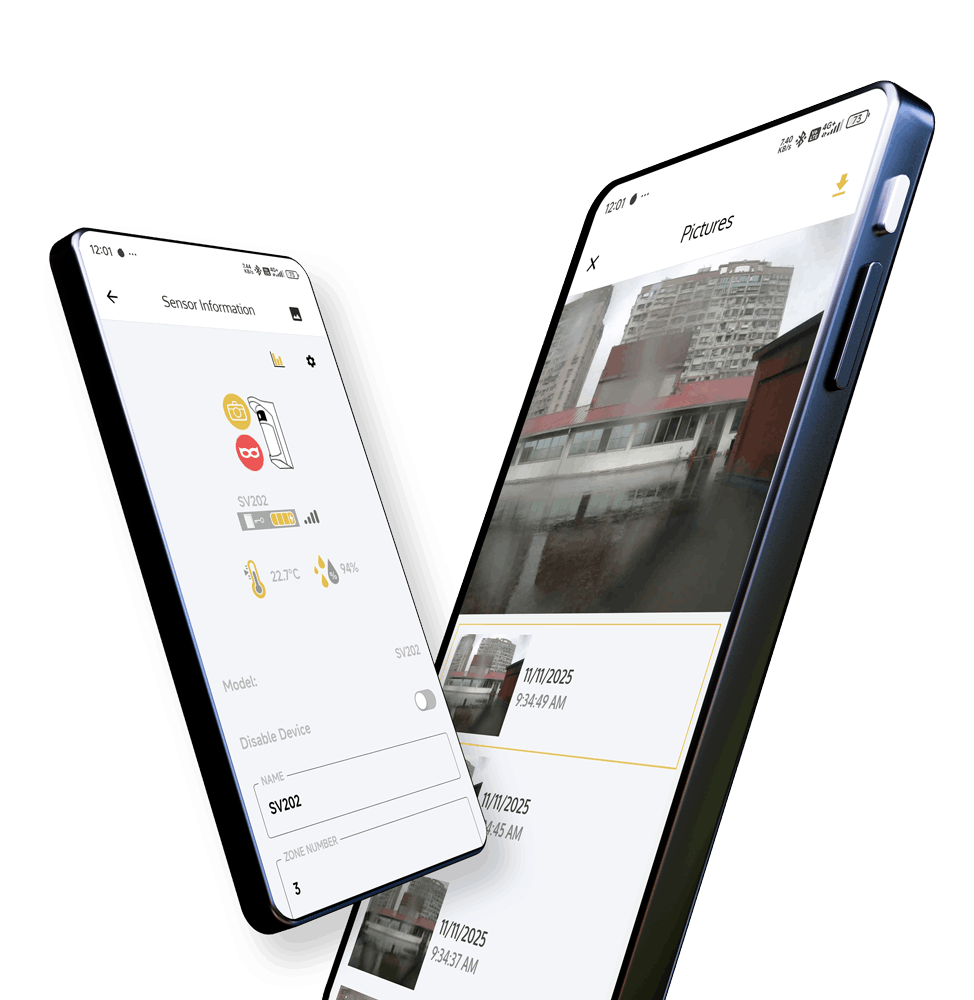

SV202 camera let you verify alarms directly from your phone. It provides all the functions to make sure the event has been captured at the right time

On-demand photo capture

Image resolution adjustment

Multiple shots for each event

LED for night view


Manual set PIR range

Choose between 2.4m and 1.2 meters high installation, this will change the angle of the
PIR sensors to get the longest range for the current installation.

Dual detector PIR

SV202 has two independent passive infrared sensors (PIR). User can adjust the sensor position and sensitivity to best fit the installation environment.

Dual PIR detector

Sensitivity adjustment

Sunlight filter

PIR temperature compensation

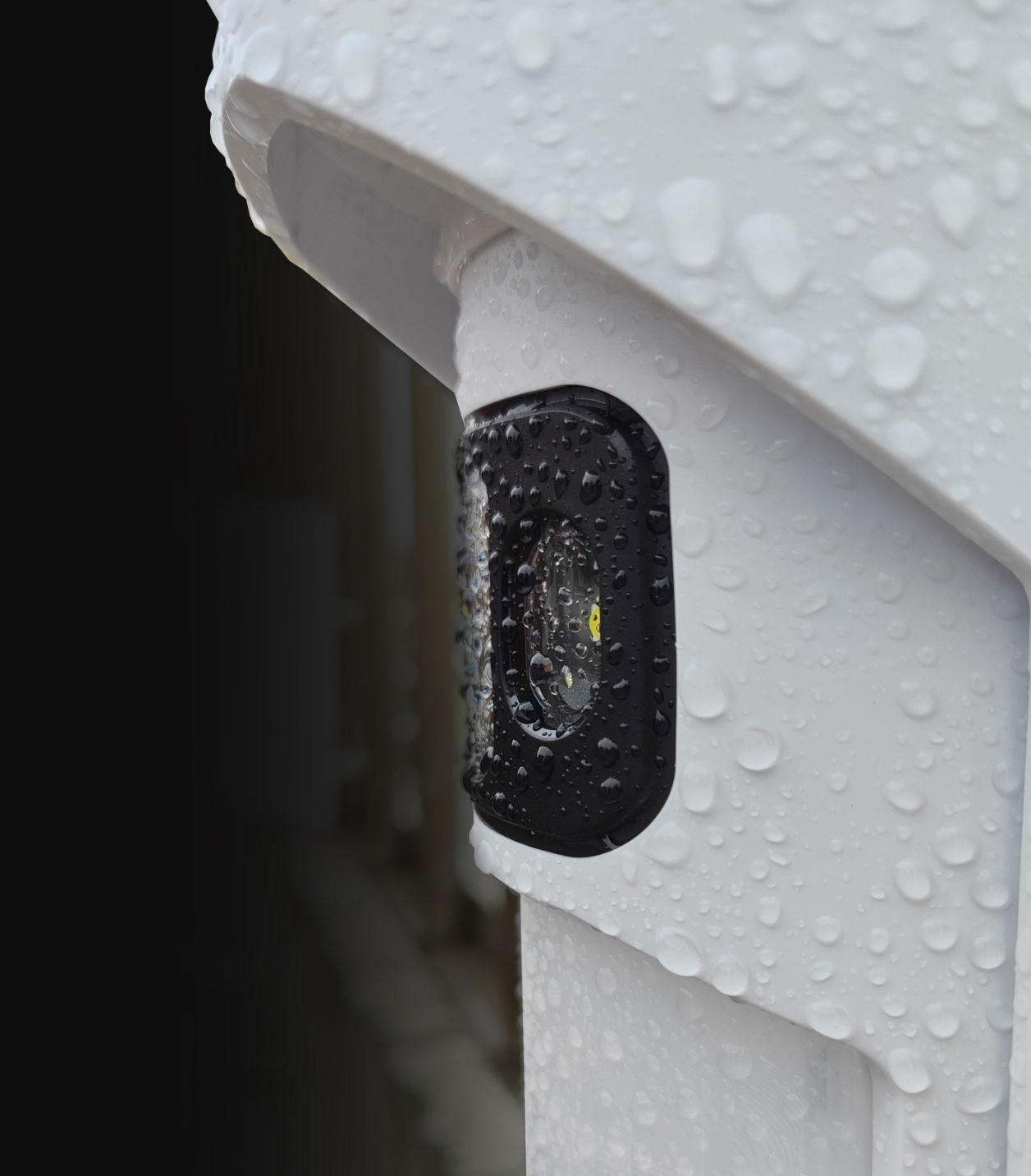

IP55 Waterproof

You can install the PIRCAM outdoor, the insulation
IP55 will protect the device from the elements.

Extra features

This product includes some extra features for professional applications. The anti-mask detection alert user when somebody tries to cover the camera. Instead of using batteries, it is possible to provide power by using optional DC power adapter. Wired alarm output let you connect an external wired device that activates when an alert is triggered.

Anti-mask detection

Temperature & humidity sensor

Optional DC power

Wired alarm output

Pet immune PIR

Protect your house from intruders
and let your pet free to move. Pet
immunity is up to 27Kg (2.4m high
installation) or 45Kg (1.2m high).

Technical specs

Frequency range

868MHz(EU) - 923MHz(US)

RF range (open space)

>1000m

RF protocol

U-Net 5.0

PIR Detection Coverage

Up to 12m x 110° (at 2.1m mounting height & below 25°C)

Pet immunity

Weight-Up to 27kg

Camera angle

96° (H), 71° (V), 126° (D)

Image resolution

640x480, 320x240

Image capture

JPEG, up to 5 images

Night vision

IR-LED, up to 10m, Color/B&W with Auto Day/Night switch

Mounting height

2.1m~2.3m(recommended)

Tamper detection

Back cover removal, Vibration sensor for ceiling mount

Power input

CR123A battery x 3, Optional DC 9~12V/1A

Battery life

4 years

Operating temperature

-10°C~ +55°C

Operating humidity

85% RH max

Dimension (mm)

200(W) x 66(D) x 230(H)

Weight

170g (batteries included)
