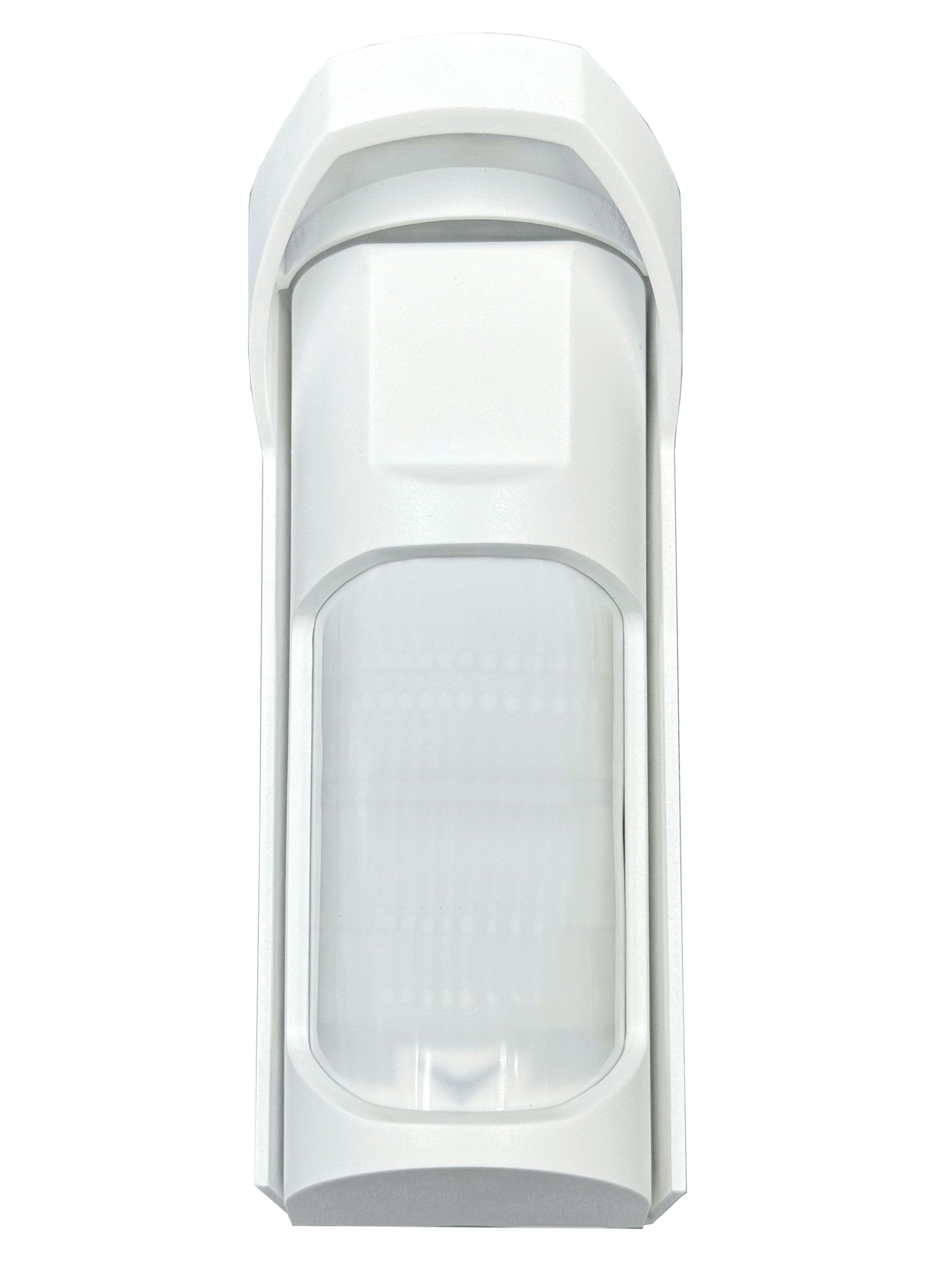

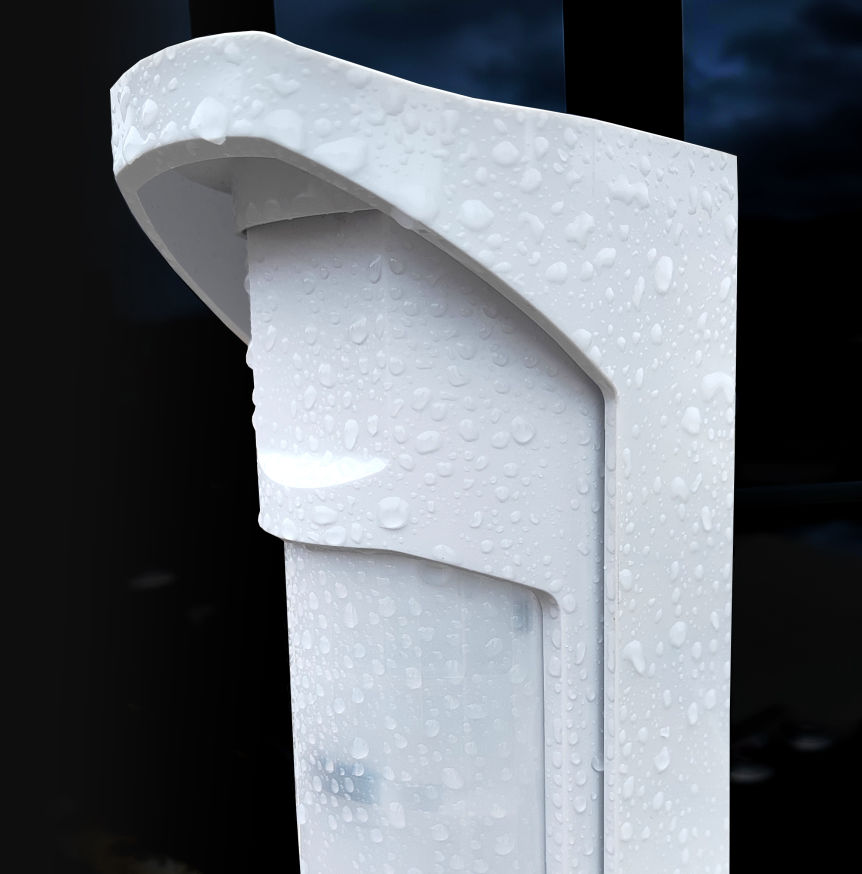

The SP222 is a Dual-tech motion detector made specifically
for outdoor use.
Built using two sets of PIR sensors equipped with sunlight filter,
coupled with digital type Microwave (MW) sensor, this combination
of triple sensor greatly reduce false alarms normally triggered by
the dynamic outdoor environment.
Using unique optics design, the detector can be mounted at either
higher height or lower height; a rare feature amongst outdoor
detectors. It can be mounted at either standard 2.4m height, or the
lower 1.2m height, which gives better immunity against larger animals.
Even the detection range can be adjusted in steps for each height.
868MHz(EU) - 923MHz(US)
>1Km
U-Net 5.0
Up to 15m x 110° (at 2.4m mounting height & below 25°C)
High mount: Weight-Up to 27kg
Low mount: Weight-Up to 45Kg
K band, 24.125G
IP55
2.2m~2.5m(recommended)
Back cover removal
CR123A battery x 3, Optional DC 9~12V/1A
Min 3 years
-30°C~ +55°C
95% RH max
93(W) x 105(D) x 244(H)
760g
The detector operates best when using the VIAS platform, but it can also operate with other 3rd party wired alarm panels as a standalone detector.
